Feature:

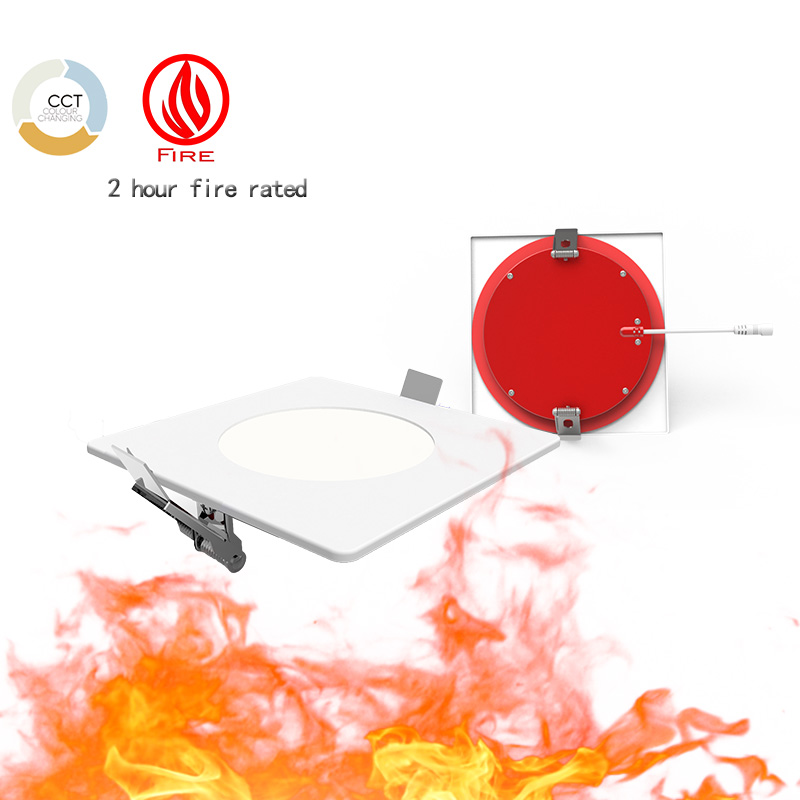

₋2 Hour Fire Resistance to meet and exceed strict fire safety codes. ₋Rated for direct contact with IC insulation.
₋E26 Edison base socket Or LED quick connector provided.
₋UL Certificates ASTM E283 certified Air Tight.
₋Type IC rated for direct contact with insulation; Type non-IC insulation should be kept minimum 3” away from all sides of fixture.

Junction Box:
Pre-wired #21 gauge galvanized steel junction box with (7) 1/2” knockouts and (4) Romex® knockouts and removable plates.

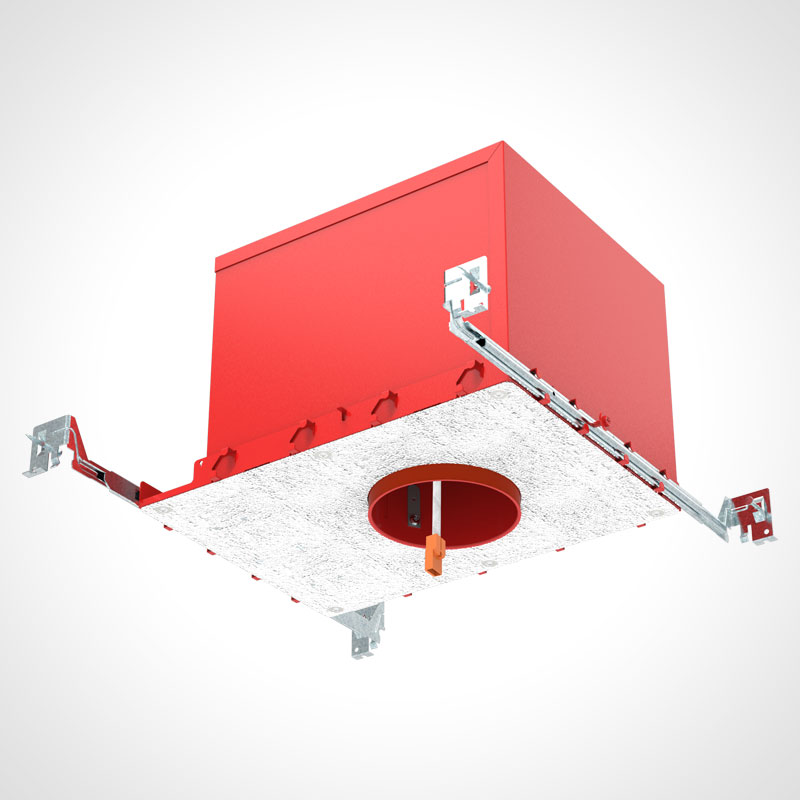

Housing:
Die formed #21 gauge galvanized steelconstruction, Up to 120 minutes fire rated L500 (floor-ceiling) & P500 (roof-ceiling) design.

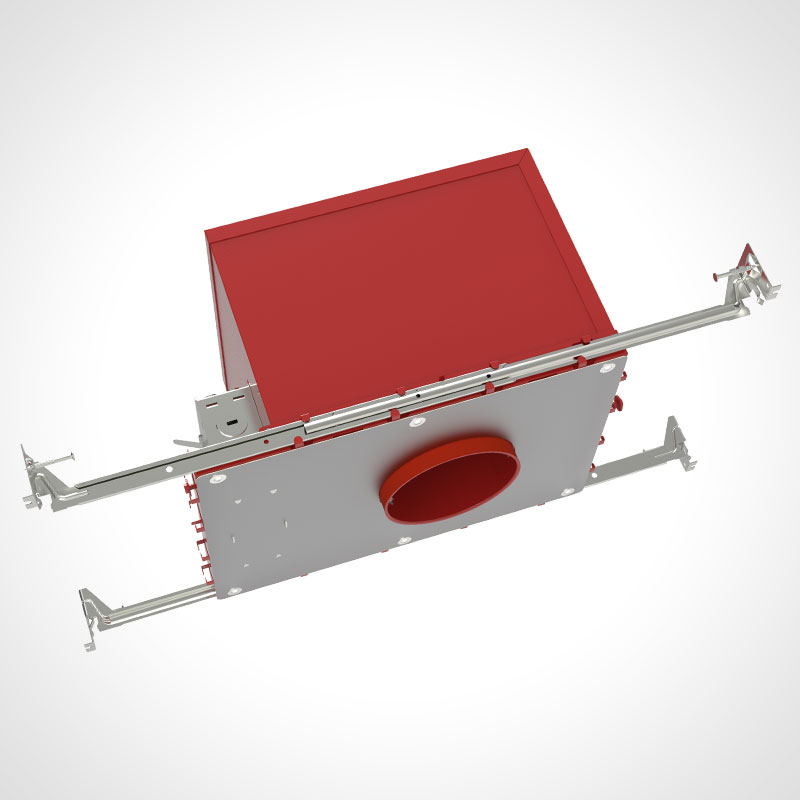

Hanger Bars:
Pre-installed #21 gauge adjustable bar hangers (14”-24”) for wood joist or t-bar ceiling installations.

Installation:
“Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24″” and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while easily aligning the housings with the joists.”

Applications:
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail. Especially in areas with limited ventilation, such as closets and utility rooms.

Listing / Warranty:
UL listed to US and Canadian standards for damp location W/Feed through. IC rated, Airtight ASTM-E283 Certified, UL 263 certificated up to 2 hour fire rated. 3 Year Limited Warranty.
